DZP Indoor Modular Panels

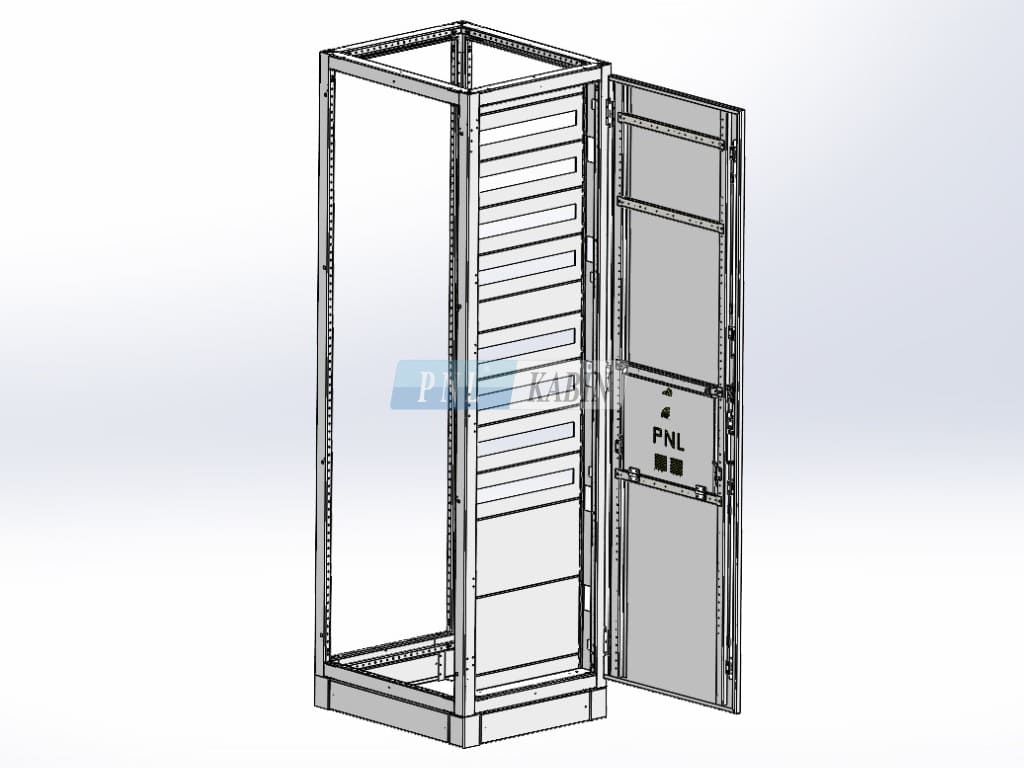

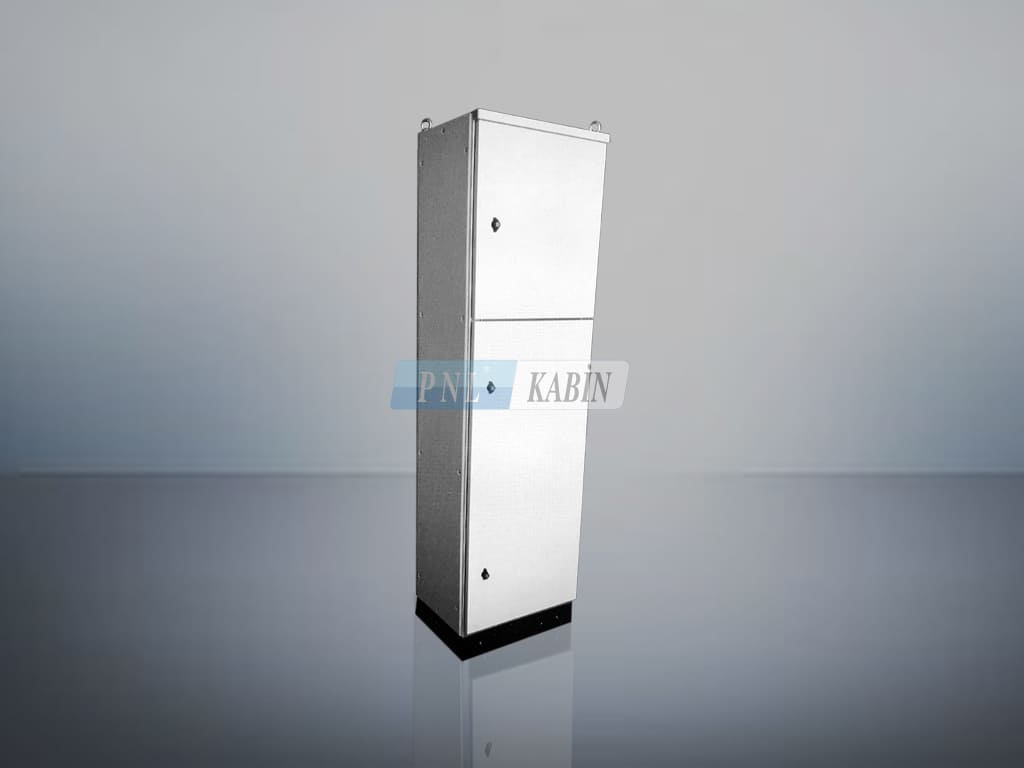

These are our panels produced as an alternative to our DZT series panels. DZP series panels are produced with a modular carcass structure suitable for the indoor environment.

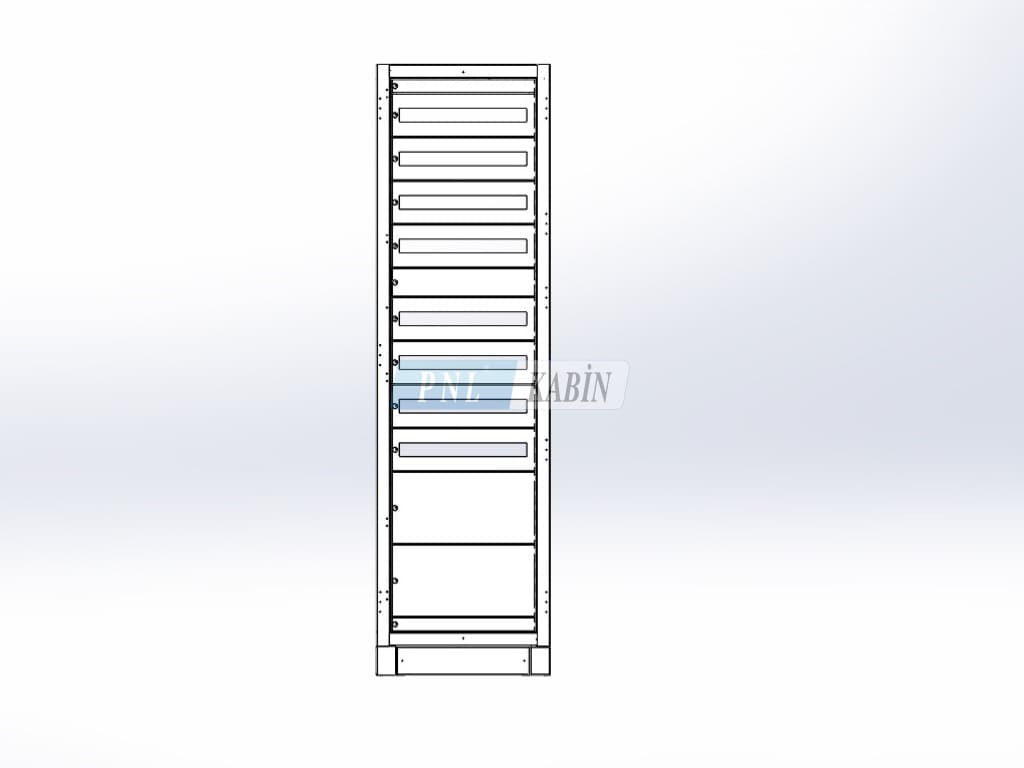

It can be produced with curtain sheet, mounting plate or meter curtain. Liquid Polyurethane Cast Gasket is used in all our panels.

Explanation	Feature
According to Place of Use	Indoor / Outdoor
Protection Class	Up to IP41
Framework	Modular 1.5mm Galvanized
Plinth	Modular 2mm DKP
Impact Rating / IK Code	IK10
Forms of Separation	Up to Form 2B
Application Types	Curtain Sheet (PS), Mounting Plate (MP), Form2b (2B), Meter Panel (SP), Meter Cover (SP)
Gasket Type	Liquid Polyurethane Cast Gasket
Color Code	Electro Static Powder Paint RAL 7035W
Base Color Code	Electro Static Powder Paint RAL 9005W
Optional Features	POC Series Tempered Glass
	POP Series Plexiglass Glass
	PODZOK Series Additional Front Door
	PODZPP Freestanding Type Curtain Sheet Set
	PODZMP Freestanding Mounting Plate Set
	PODZKD Freestanding Corner Turn Module
	PODZAK DZT Serial Bottom Cover Set
	PORAL Special Request Paint
	POA4 Metal Project Pocket
	PO Series Metal Scissor Lid Stopper
	PO Serial Metal Fan Module Ral7035
	PO Serial DZ External Conversion Module
	PO Series Freestanding Field Type Leg Set

Width (cm)	Height (cm)	Depth ( cm)
90	210	80
80	180	70
70	160	60
60		50
50		40
40

Explanation	Feature
DIN 43660(25mm)	SUITABLE
Axis Pitch	25mm
Hinge	3 Points
Lock Type	Rod Latch Lock System 4 points (Height up to 180cm)
Fixing to the Floor	With 4 Point M12 Bolt
Operating Temperature	5°C , +40°C
Business Relative Humidity	+20°C at %90 , +40°C at %50
Transport Mounting Arrangements	M10 Eyebolt
Protection Circuit - Isolation	Door to Body Stud
Sheet Thickness and Types	Framework 1.5mm Galvanized
	Plinth Wedge 2mm DKP Ral 9005
	Front Door 1.2 mm DKP Ral 7035 W
	Cover Plates Profile 1.2 mm Galvanized
	Cover Plate 1-1,2mm DKP Ral 7035W
	Internal mounting parts 1.5mm Galvanized
	Mounting Plate 1.5 mm Galvanized
	Aluminum Rail Fastening 2mm Galvanized
	Fixed Door 1mm DKP Ral 7035
Cover Plate Usable Area (cm)	Width-15cm
Cover Plate W Vending Module Numbers	W:80 cm 36W, W:70 cm 30W, W:60 cm 24W, W:50 18W
Mounting Plate Usable Area(cm)	Width-1cm x Height-25cm
Front Door Usable Area (cm)	Width-20cm x Height-20cm
Plinth Attachment to the Floor Dimensions (cm)	Width-9cm x Depth-9cm with M12 Bolt

Applicable Standards
Full Type Test IEC EN 61439-1/2 4000A 100kA Form 4B Low voltage switching and control equipment
TSE EN 61439-1/2, IEC EN 61439-1/2 Low voltage switching and control equipment
TSE EN 62208, IEC EN 62208 Empty Enclosures - Low voltage switching and control equipment
Degree of Protection Provided in TSE EN 60529, IEC EN 60529 Enclosures (IP Code)
TSE EN 62262, IEC EN 62262 Protection Degrees Provided by the Enclosure of Electrical Equipment Against External Mechanical Impacts (IK Code)
Turkak ISO 9001-2008 Quality Management System
Gost-R ,EAC Russia Declaration
CE 2006-95AT Low Voltage Directive
2014 88671 Trademark Registration
IEC EN 60068-3-3 IEC EN 60068-2-57 IEC EN 60068-2-6 ZONE-4 Criterion 0 Seismic (Earthquake) Certificate
UL ICC-ES AC 156, IEC EN 60068-2-47 Seismic (Earthquake) Certificate
ISO 140001:2015 Environmental Management System
ISO 450001:2015 Occupational Health and Safety Management System
