TCS Subdistribution Panels

Floor and Secondary Distribution Panels

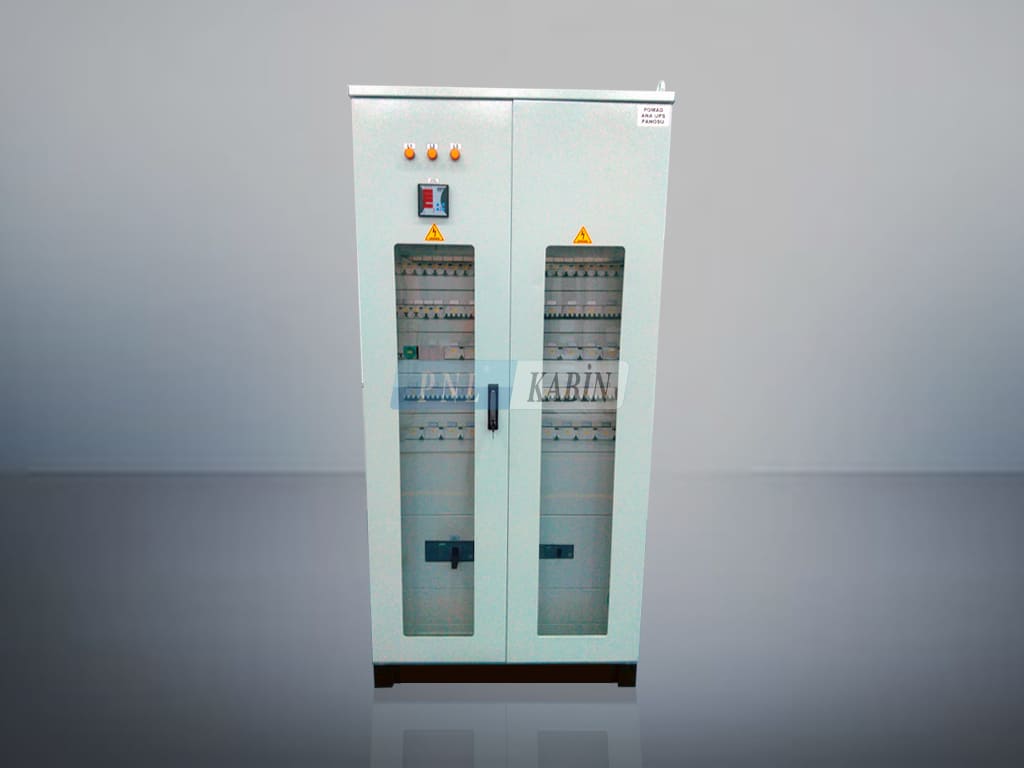

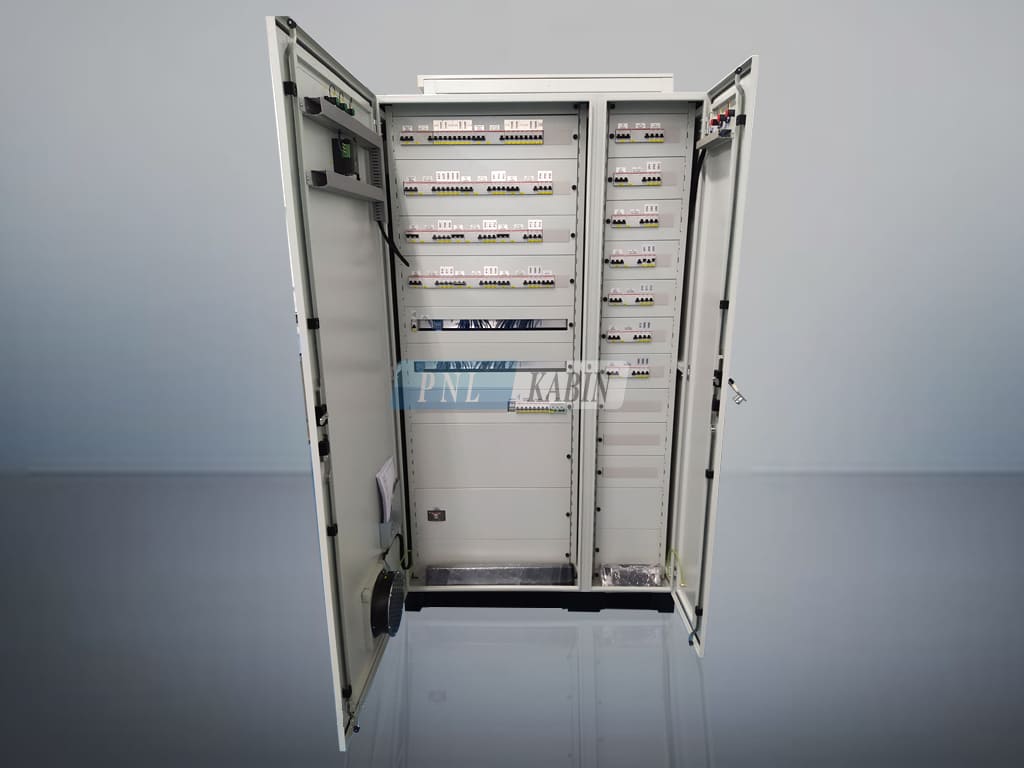

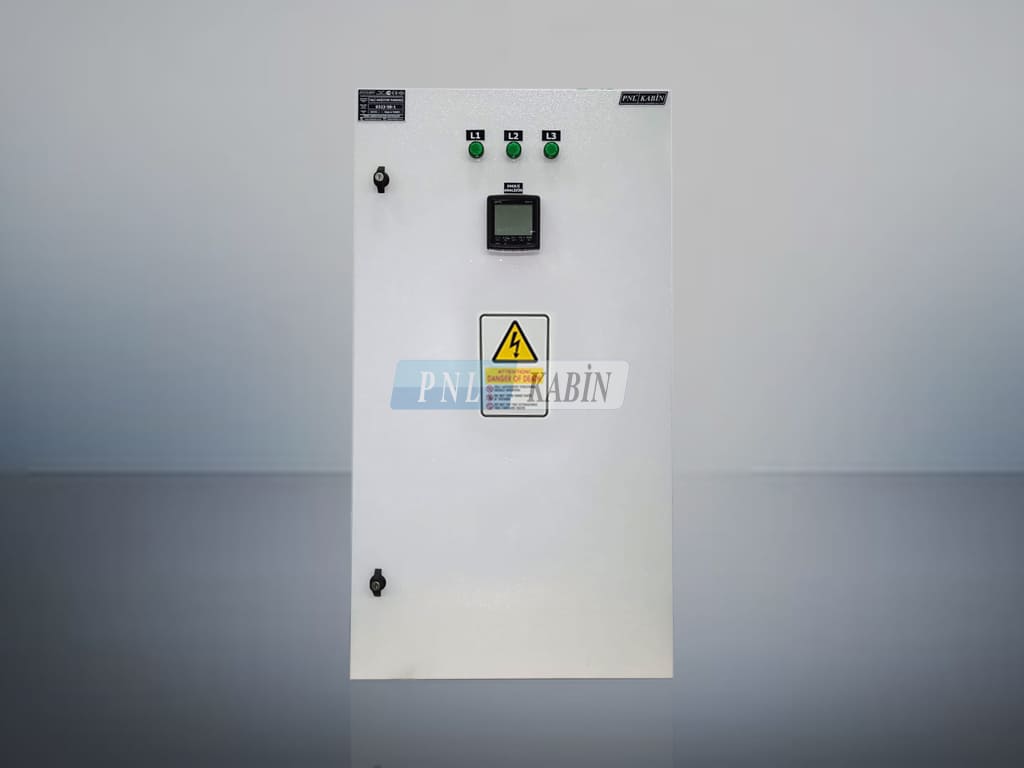

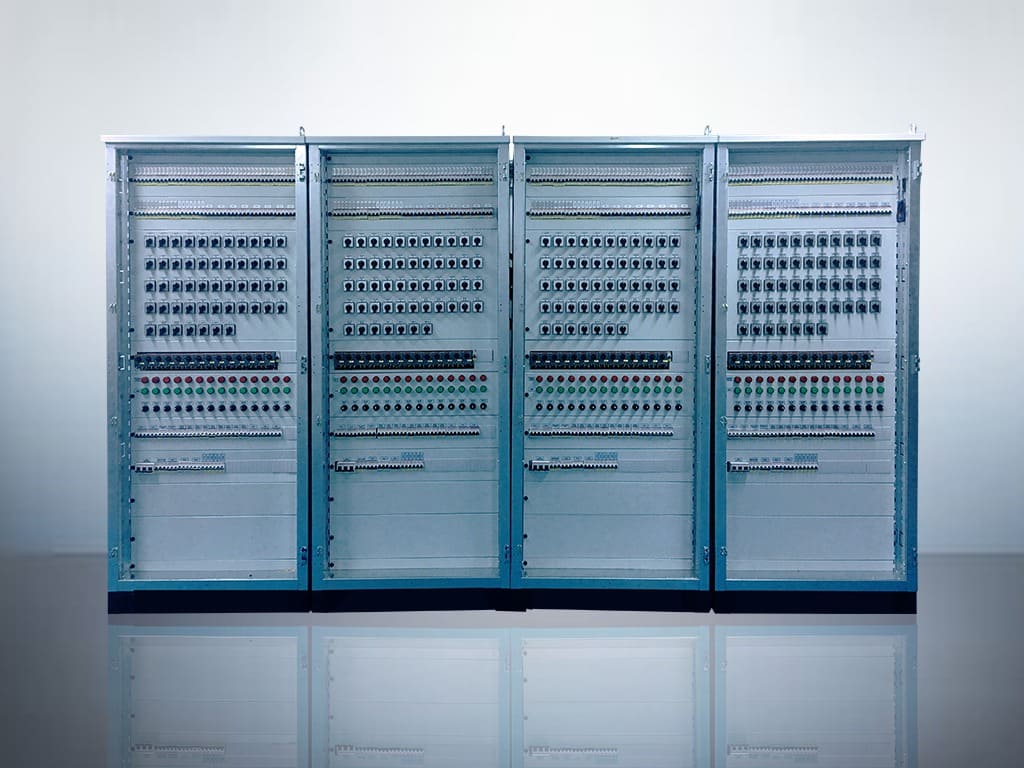

TCS Subdistribution Panels

It is designed to control secondary outlets most appropriately for all kinds of automation and security applications in Industrial and Residential applications.

It is the type used in ADP panel outputs. TCS panels are chosen as floor distribution panels in projects. They meet the energy needs of switch units, sockets, lighting, and other loads.

Switches and Circuit Breakers: Subdistribution panels contain switches, circuit breakers, or fuses to power and direct energy to subpanels. There is a separate circuit breaker or switch for each circuit or section.

Sub-panels: Sub-distribution panel allows positioning and connections of sub-panels. These sub-panels are used to control specific sections or functions. For example, in a workplace, different subpanels may be used for office lighting, sockets, and machines.

Protection and Security: Subsidiary distribution panels monitor and control overcurrent, overvoltage, and other dangerous situations. This protects electrical systems and user safety.

Energy Distribution: Secondary distribution panels ensure energy is distributed balancedly among various loads. This prevents overload and ineffective use of energy resources.

Remote Monitoring: Modern sub-distribution panels can be integrated with remote monitoring systems. This way, energy consumption and the panel's status can be monitored remotely.

Customizability: Subdistribution panels can be customized to suit the needs of the building or facility. The capacity, number of circuits, and other features of electrical panels can be customized.

ExplanationApplicable Qualification
Trademark PNL Kabin
According to Place of Use LV Power Distribution Equipment
Place of Use Indoor & Outdoor Environments
Main Busbar Short Circuit Breaking Withstand Current Icw 100 kA
Short Circuit Peak Withstand Current to Main Busbar Ipk 220 kA
Hardware Internal Allocation Format Form 1 / Form 2b (2a) / Form 3b (3a) / Form 4b (4a)
Mechanical Impact Protection Class IK 10
External Protection Degree (IP) IP31 / IP41 / IP54 / IP65
Internal Protection Degree (IP) IP30
