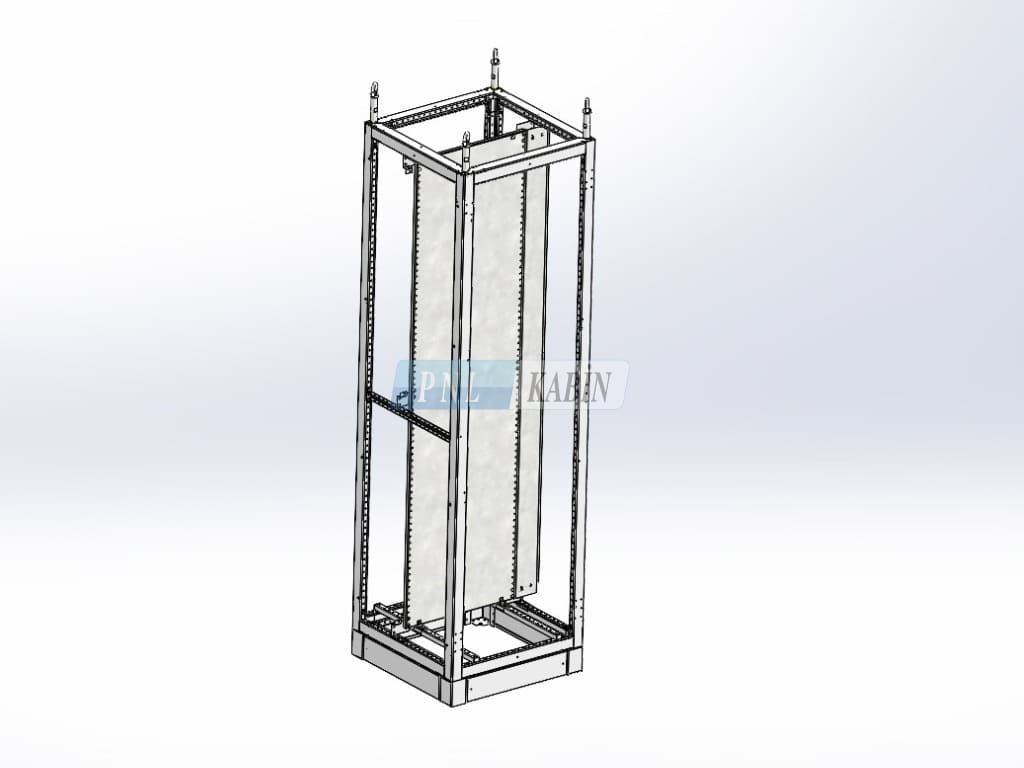

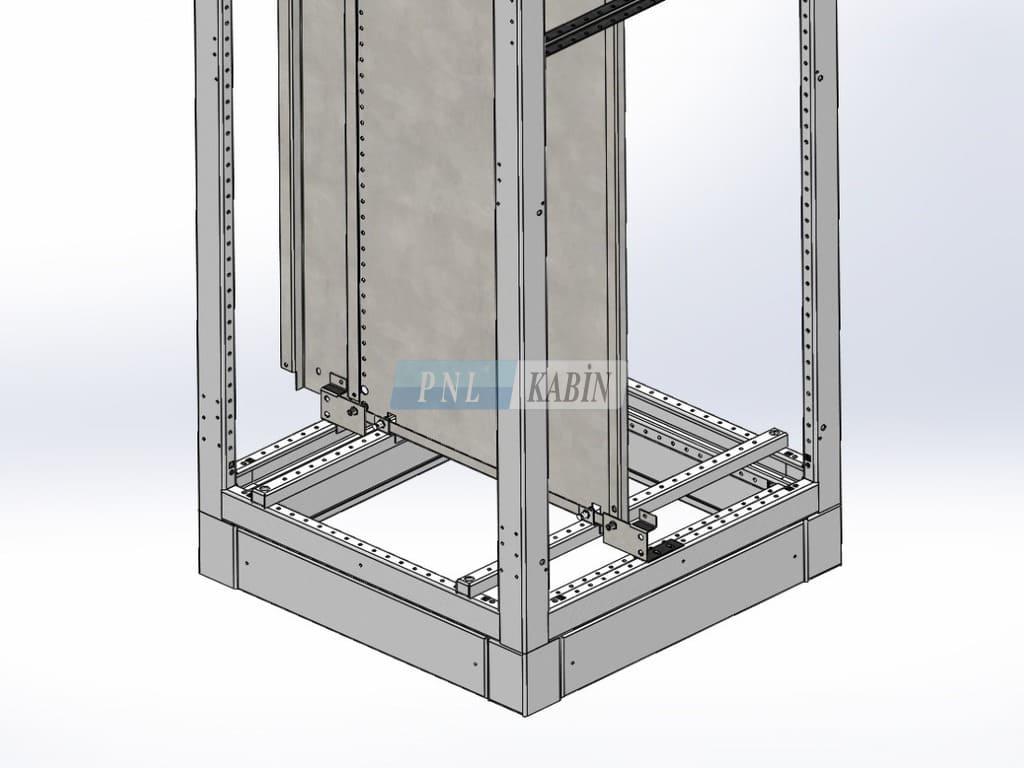

These are our standing type panels produced with mounting plate. DZT serial Panels; It was developed in accordance with "IEC 61439-2 Low Voltage Switching Systems".
It has a modular structure; It includes mounting types suitable for ABB, Legrand, Eaton, Schneider and Siemens switchgear products.
It allows switchgear mounting with all accessories according to the horizontal and vertical mounting types in the product ranges of the above-mentioned switchgear manufacturers.
Explanation | Feature |
---|---|
According to Place of Use | Indoor / Outdoor |
Protection Class | Up to IP55 |
Framework | Modular 2mm Galvanized |
Plinth | Modular 2mm DKP |
Impact Rating/IK Code | IK10 |
Forms of Separation | Up to Form 4B |
Application Types | Mounting Plate (MP) |
Gasket Type | Liquid Polyurethane Cast Gasket |
Color Code | Electro Static Powder Paint RAL 7035W |
Base Color Code | Electro Static Powder Paint RAL 9005W |
Optional Features | POC Series Tempered Glass |
POP Series Plexiglass Glass | |
PO2D Series 2mm Front Door | |
PODZOK Series Additional Front Door | |
PODZPP Freestanding Type Curtain Sheet Set | |
PODZMP Freestanding Mounting Plate Set | |
PODZIP DZT Series IP54 | |
PODZKD Freestanding Corner Turn Module | |
PODZAK DZT Serial Bottom Cover Set | |
PORAL Special Request Paint | |
POA4 Metal Project Pocket | |
PO Series Table Wheel H:80/120mm | |
PODZSS Serial Floor Standing Seismic Kit | |
PO Series Metal Scissor Lid Stopper | |
POHV Serial Ventilation Module H:15cm | |
PO Serial Metal Fan Module Ral7035 | |
PO Serial DZ External Conversion Module | |
PO Series Freestanding Field Type Leg Set |
