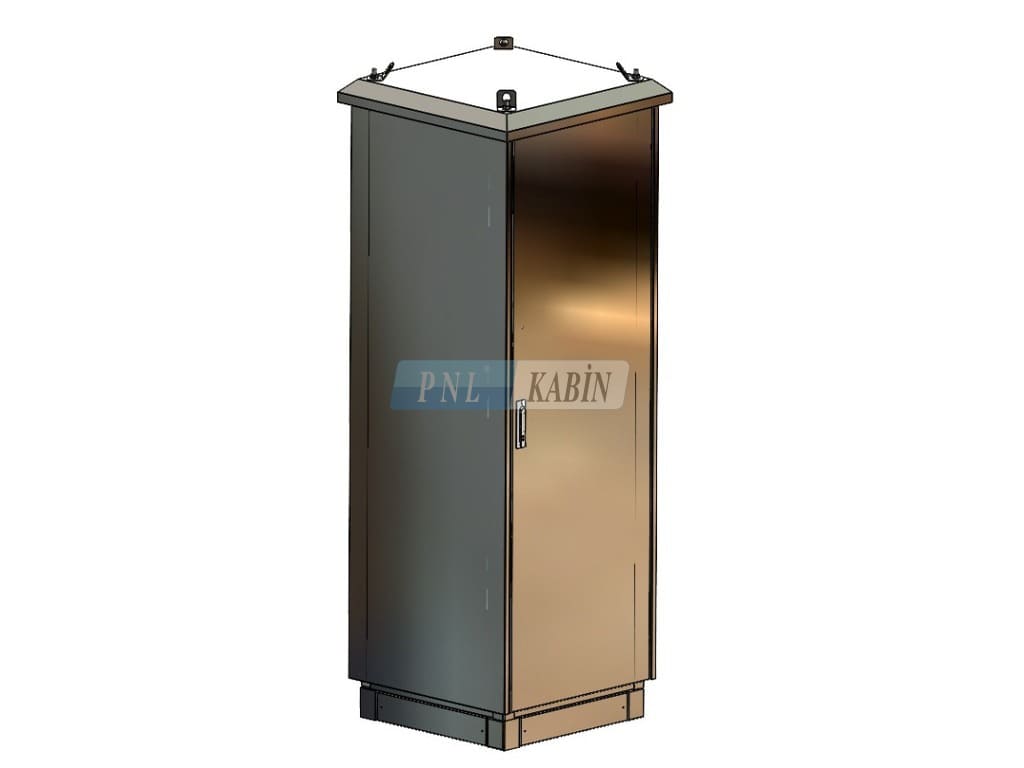

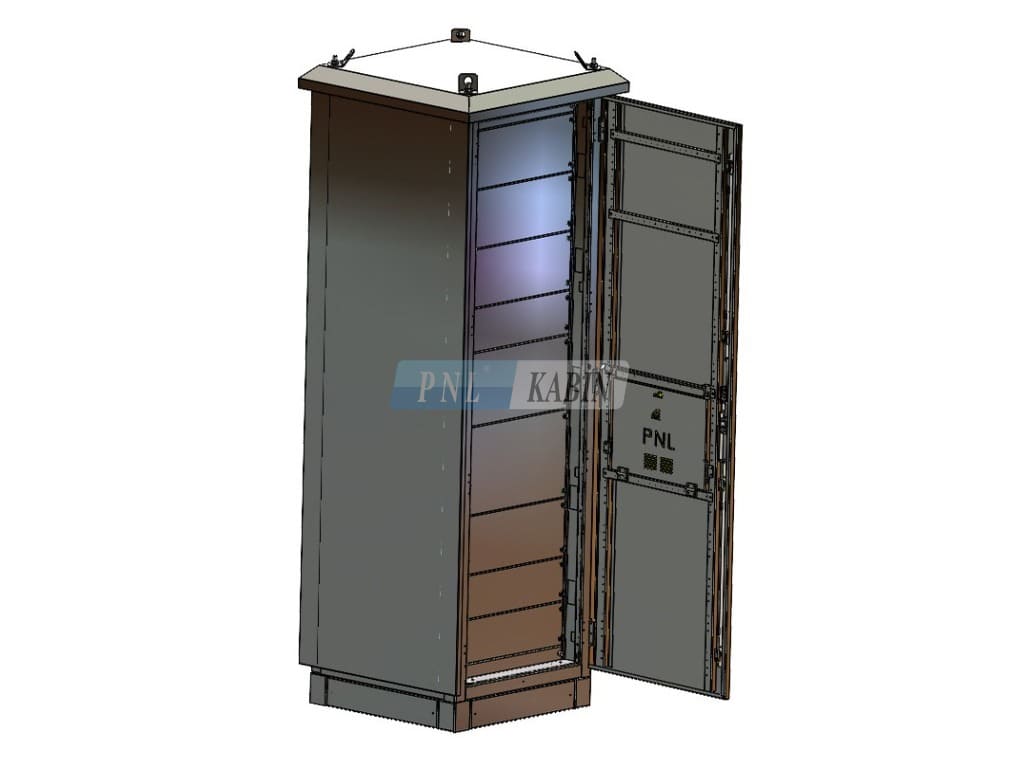

DZX Stainless Panels

Production is made from 304 or 316 stainless sheet according to customer demand. The body structure is designed as monoblock or semi-modular.

Stainless Standing type panels provide high corrosion resistance. Liquid Polyurethane Cast Gasket is used in all our panels.

Explanation	Feature
According to Place of Use	Indoor / Outdoor
Protection Class	Up to IP55

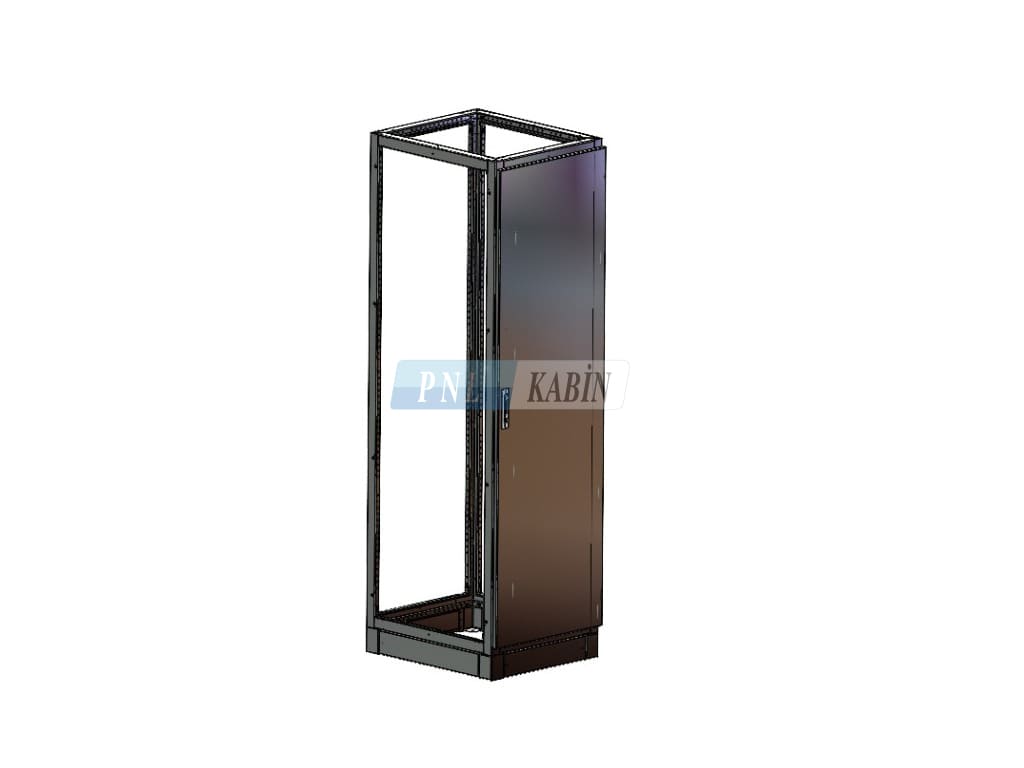

Framework	Monoblock or Semi-Modular
Plinth	Monoblock or Semi-Modular
Application Types	Cover Plates (PS), Mounting Plate (MP)
Gasket Type	Polyurethane Cast Gasket
Optional Features	POC Series Tempered Glass
	POP Series Plexiglass Glass
	POA4 Metal Project Pocket
	PODZAK DZT Serial Bottom Cover Set
	PO Series Table Wheel H:80/120mm
	PO Series Metal Scissor Lid Stopper
	POHV Serial Ventilation Module H:15cm
	PO Serial Metal Fan Module Ral7035

Explanation	Feature
DIN 43660(25mm)	SUITABLE
Axis Pitch	25mm
Hinge	3 Point
Lock Type	Rod Latch Lock System 4 Points (Height up to 180cm)
Transport Mounting Arrangements	M12 Eyebolt
Protection Circuit - Isolation	Door to Body Stud
Sheet Thickness and Types	304 or 316 Quality Stainless
	Sheet Thicknesses According to Customer Request

Applicable Standards
TSE EN 62208, IEC EN 62208 Empty Enclosures - Low voltage switching and control equipment
Degree of Protection Provided in TSE EN 60529, IEC EN 60529 Enclosures (IP Code)
TSE EN 62262, IEC EN 62262 Protection Degrees Provided by the Enclosure of Electrical Equipment Against External Mechanical Impacts (IK Code)
Turkak ISO 9001-2008 Quality Management System
Gost-R ,EAC Russia Declaration
CE 2006-95AT Low Voltage Directive
2014 88671 Trademark Registration
IEC EN 60068-3-3 IEC EN 60068-2-57 IEC EN 60068-2-6 ZONE-4 Criterion 0 Seismic (Earthquake) Certificate
UL ICC-ES AC 156, IEC EN 60068-2-47 Seismic (Earthquake) Certificate
ISO 140001:2015 Environmental Management System
ISO 450001:2015 Occupational Health and Safety Management System
