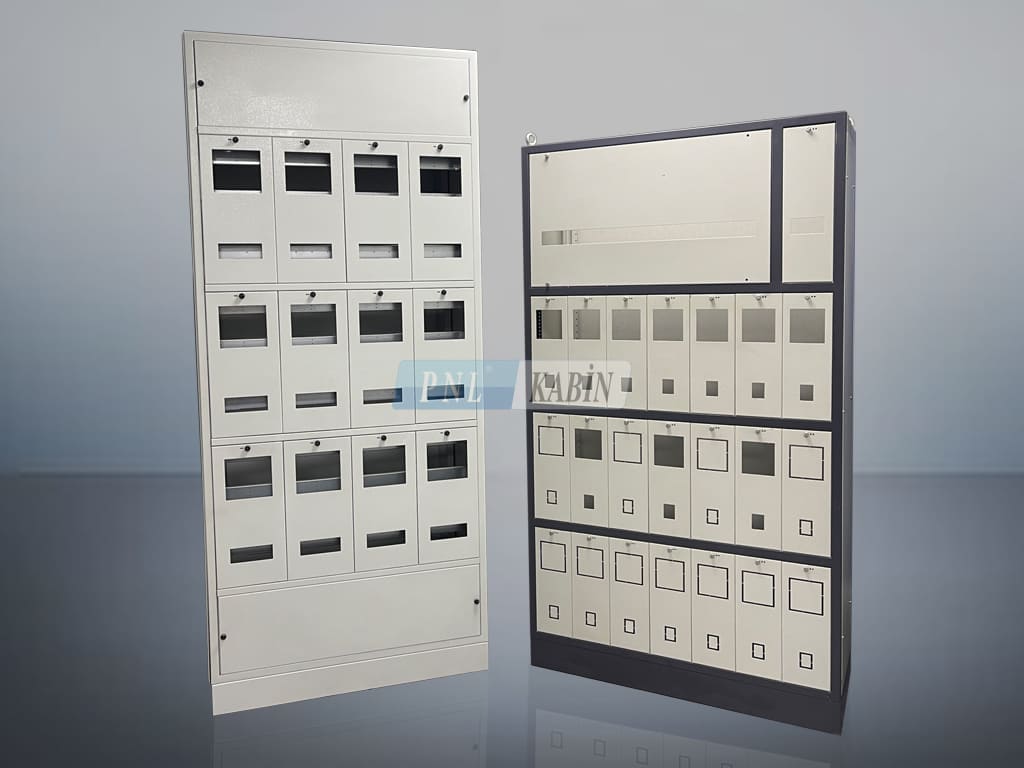

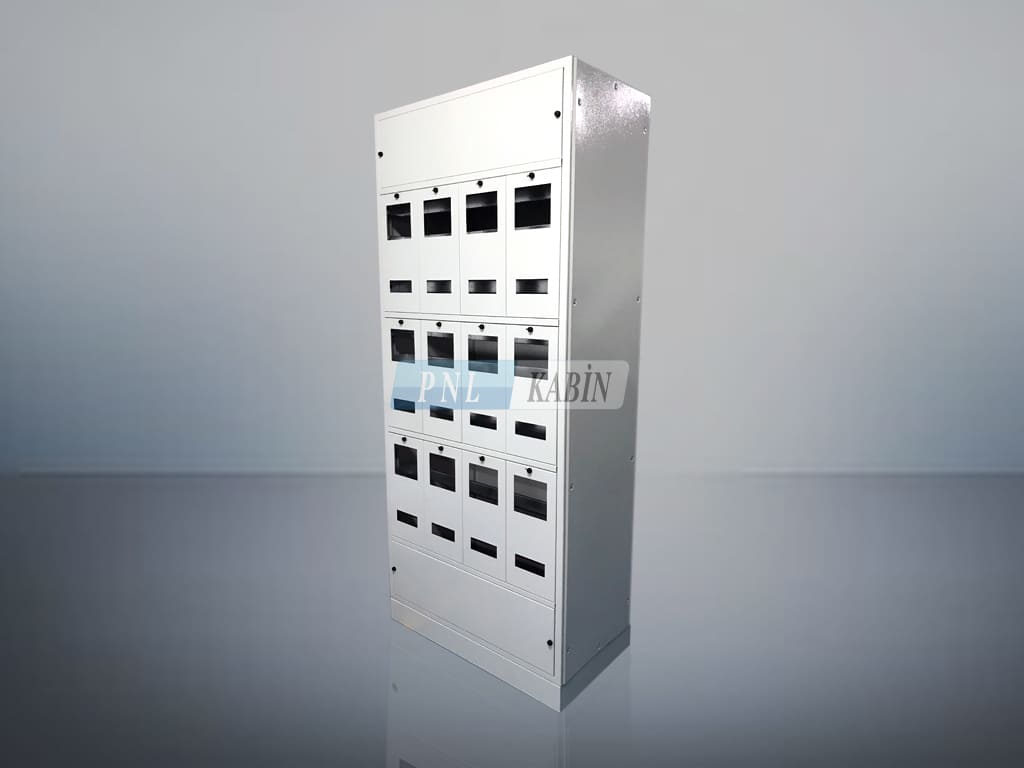

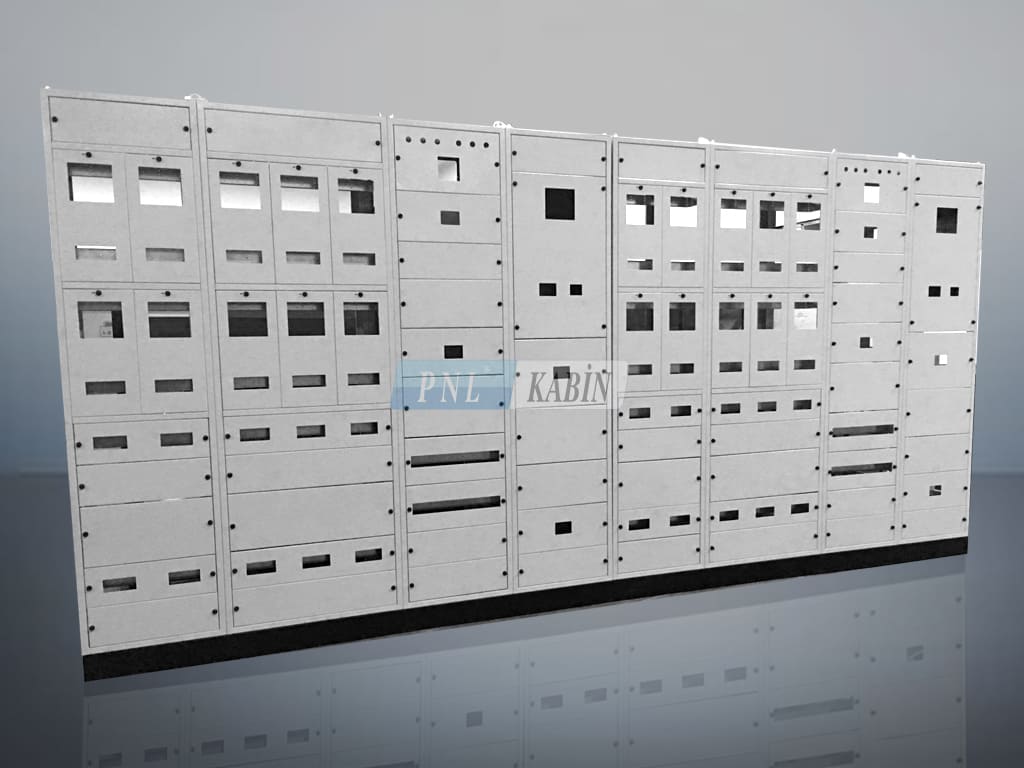

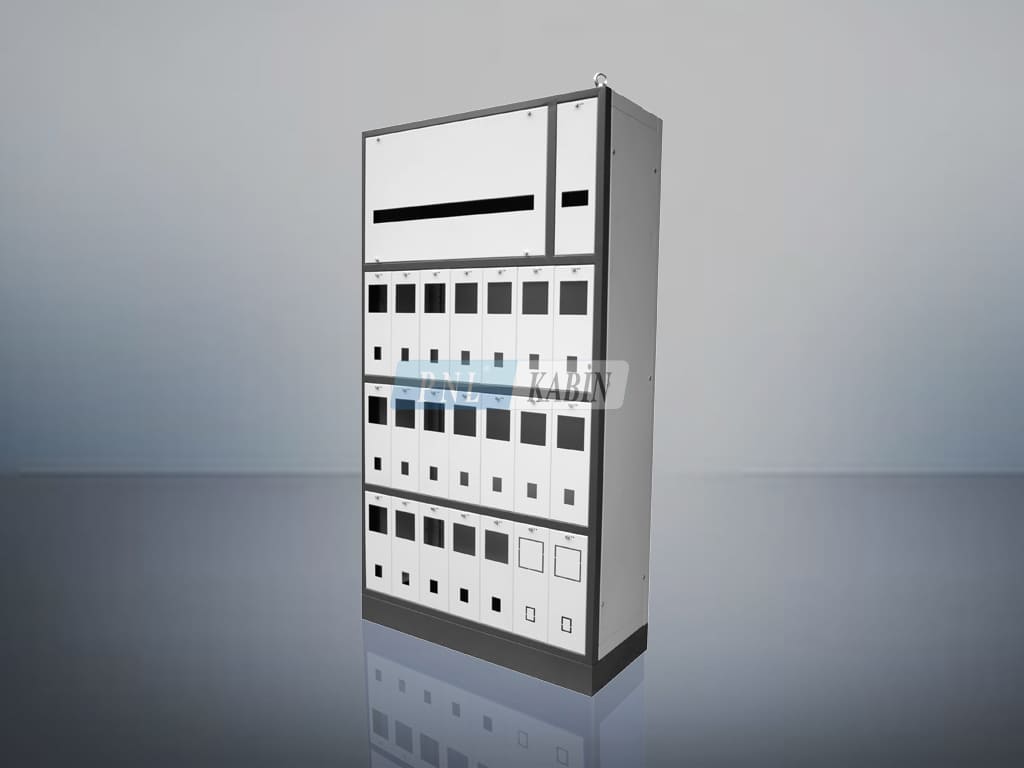

These are our freestanding type panels with a semi-modular body structure and designed to be used in indoor environments.
The front and rear frames of DZY series panels are produced by welding. These frames are fixed to each other with mounting profiles. The entire carcass is painted with RAL 7035 electrostatic paint. Liquid Polyurethane Cast Gasket is used in all our panels.
| Explanation | Feature |
|---|---|
| According to Place of Use | Indoor/Outdoor |
| Protection Class | Up to IP65 |
| Framework | Semi Modular Welded 1.5mm DKP |
| Plinth | Semi Modular 1.5 mm DKP |
| Impact Rating/IK Code | IK10 |
| Application Types | Cover Plates (PS), Mounting Plate (MP), Meter Panel (SP) |
| Gasket Type | Polyurethane Cast Gasket |
| Color Code | Electro Static Powder PaintRAL 7035W |
| Base Color Code | Electro Static Powder PaintRAL 9005W |
| Optional Features | POC Series Tempered Glass |
| POP Series Plexiglass Glass | |
| PO2D Series 2mm Front Door | |
| PODZOK Series Additional Front Door | |
| PODZPP Freestanding Type Curtain Sheet Set | |
| PODZMP Freestanding Mounting Plate Set | |
| PODZAK DZT Serial Bottom Cover Set | |
| PORAL Special Request Paint | |
| POA4 Metal Project Pocket |
