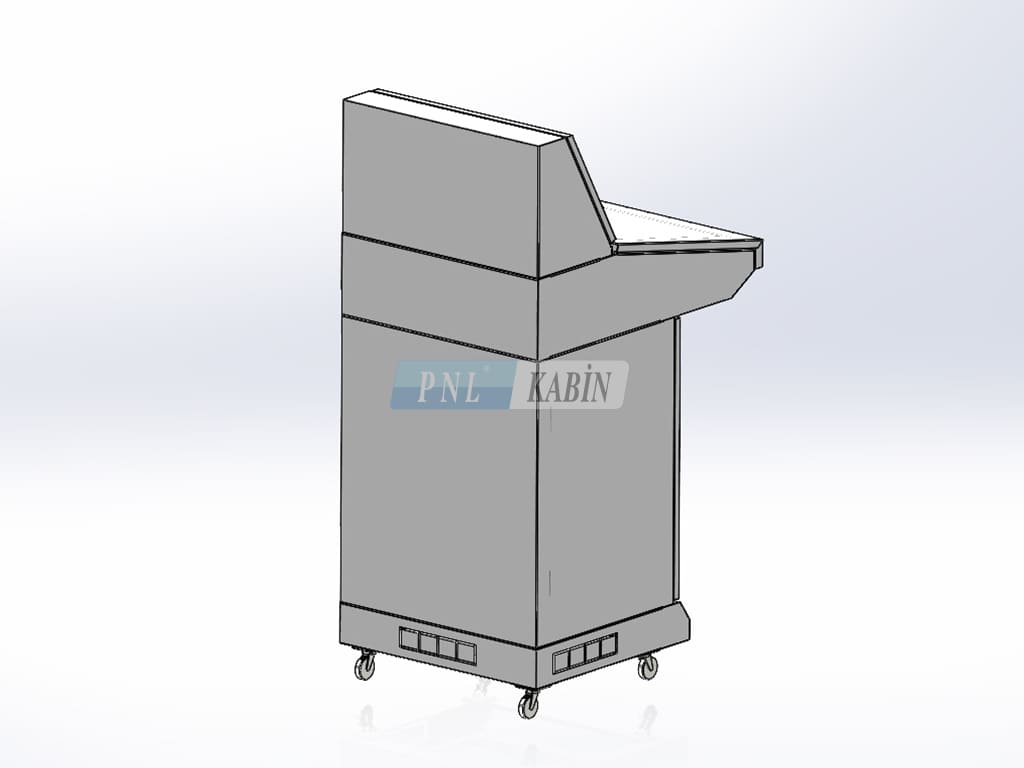

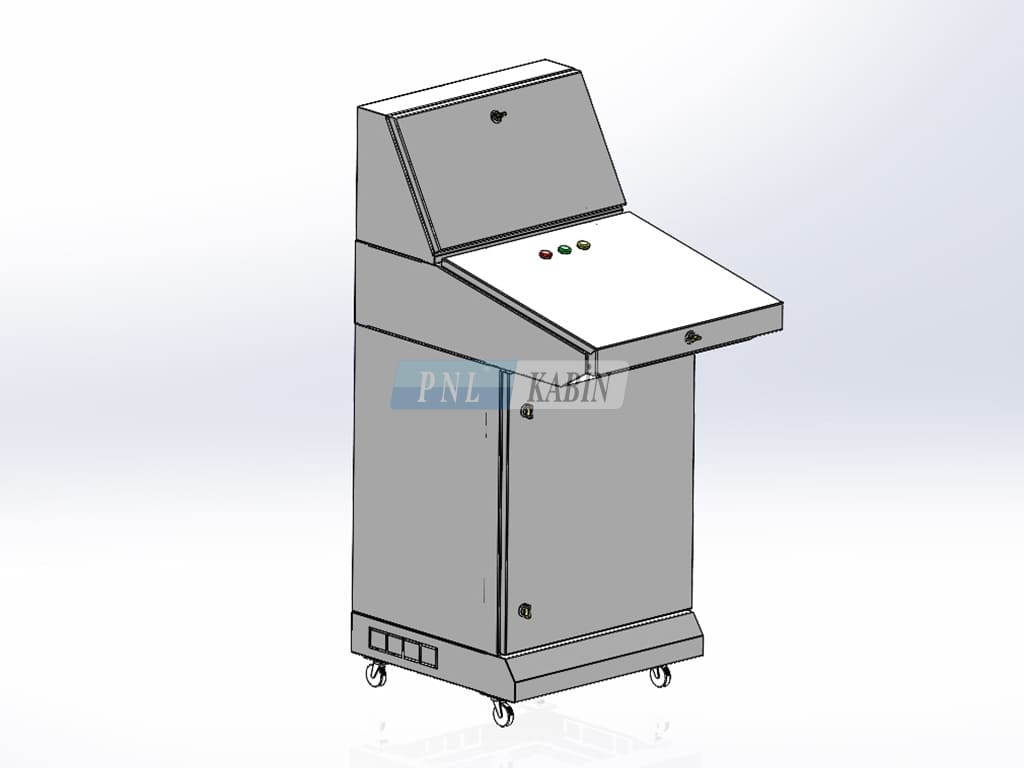

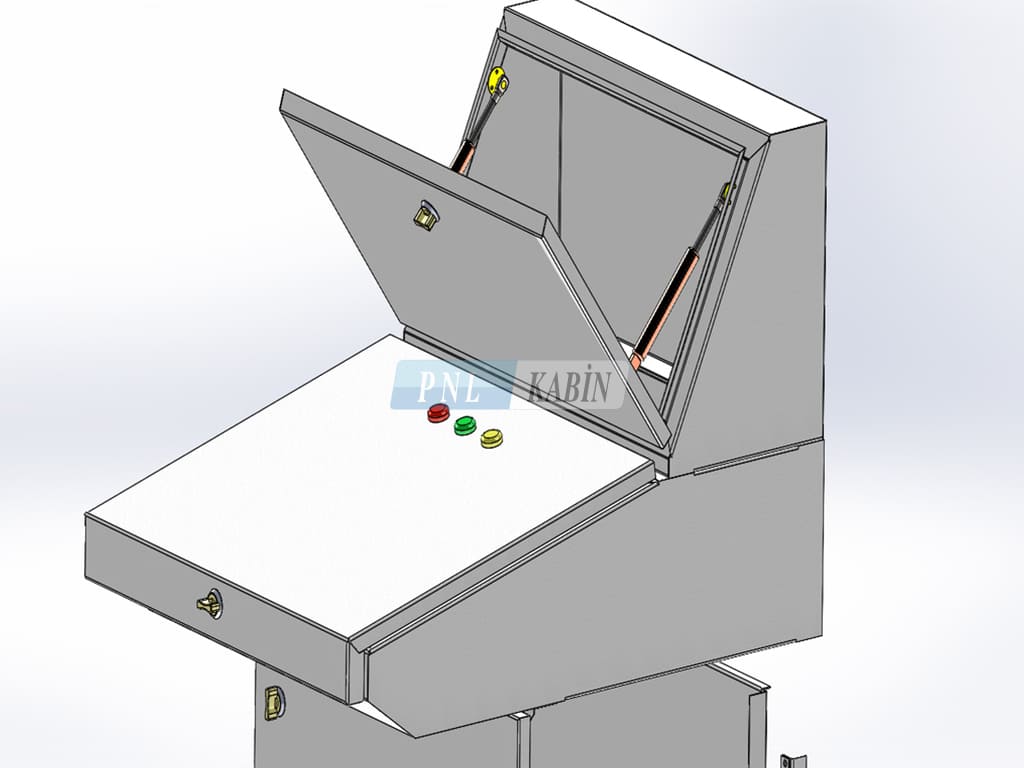

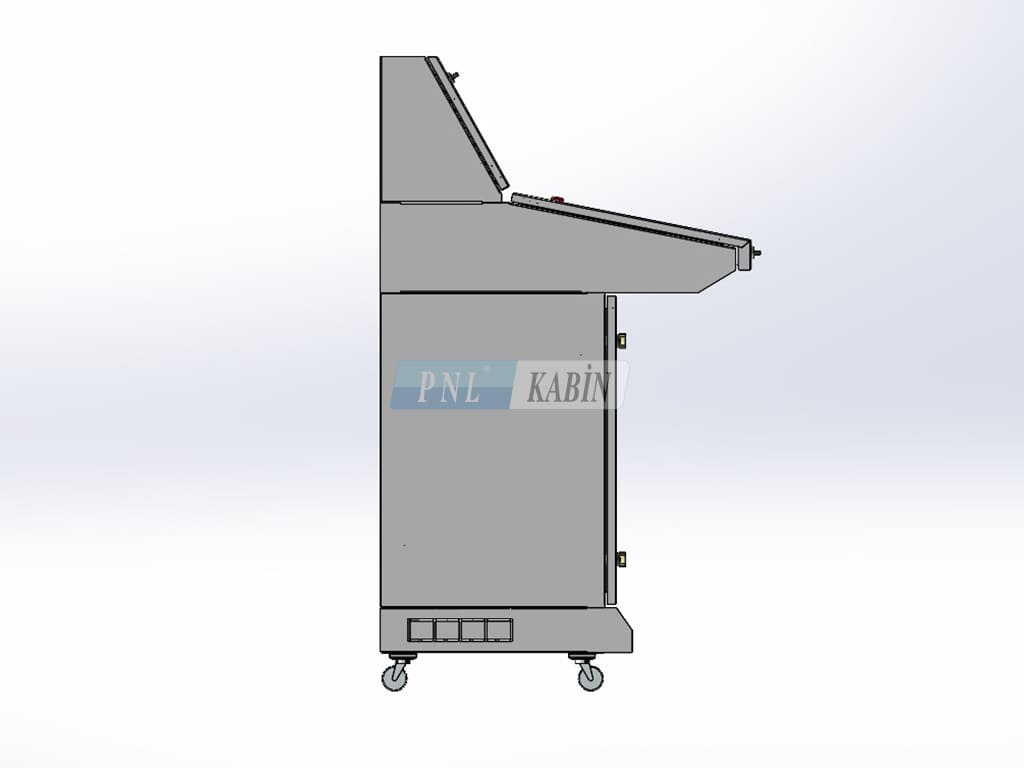

It is designed in accordance with the monoblock carcass structure. Piano panels are used to control machinery and automation systems..
Piano type panels can be customized according to customer demands. It can be used as a control desk.
| Explanation | Applicable Feature |
|---|---|
| Application Types | With Mounting Plate(MP) |
| According to Place of Use | Indoor / Outdoor |
| Protection Class | Up to IP55 |
| Framework | MonoBlock 1.5 DKP |
| Plinth | Semi Modular Welded 1.5mm DKP |
| Impact Rating/IK Code | IK10 |
| Gasket Type | Polyurethane Cast Gasket |
| Color Code | Electro Static Powder PaintRAL 7035W |
| Base Color Code | Electro Static Powder PaintRAL 9005W |
| Optional Features | POC Series Tempered Glass |
| POP Series Plexiglass Glass | |
| PODZOK Series Additional Front Door | |
| PODZMP Freestanding Mounting Plate Set | |
| PORAL Special Request Paint | |
| POA4 Metal Project Pocket | |
| PO Series Table Wheel H:80/120mm | |
| PO Series Metal Scissor Lid Stopper |
