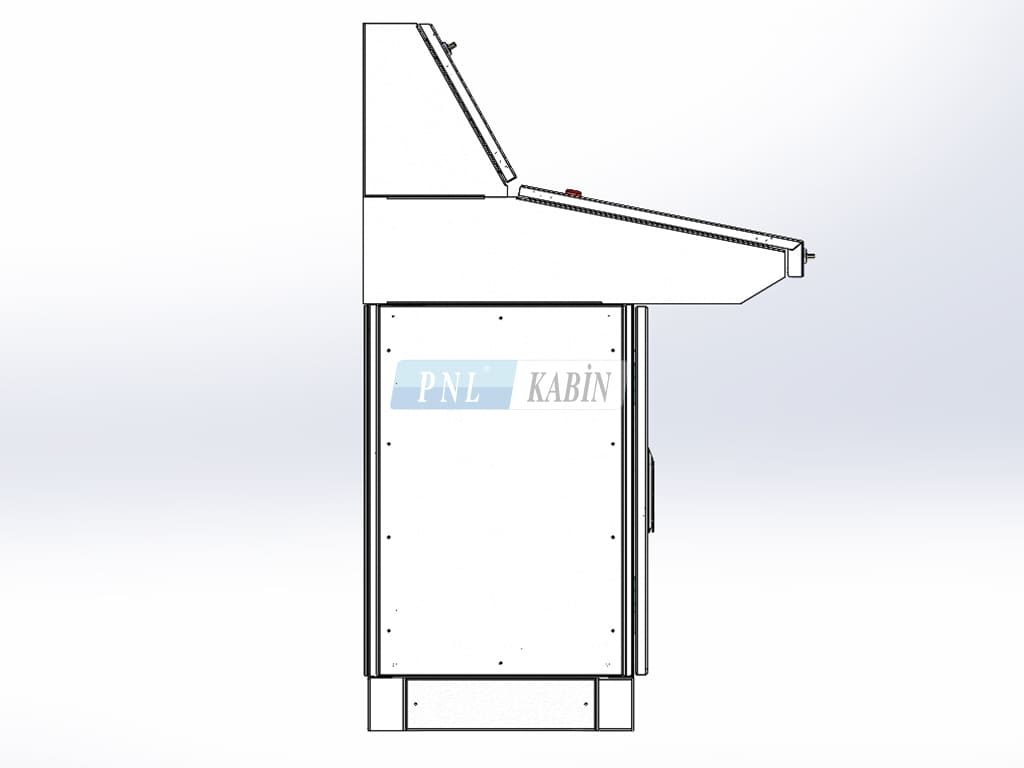

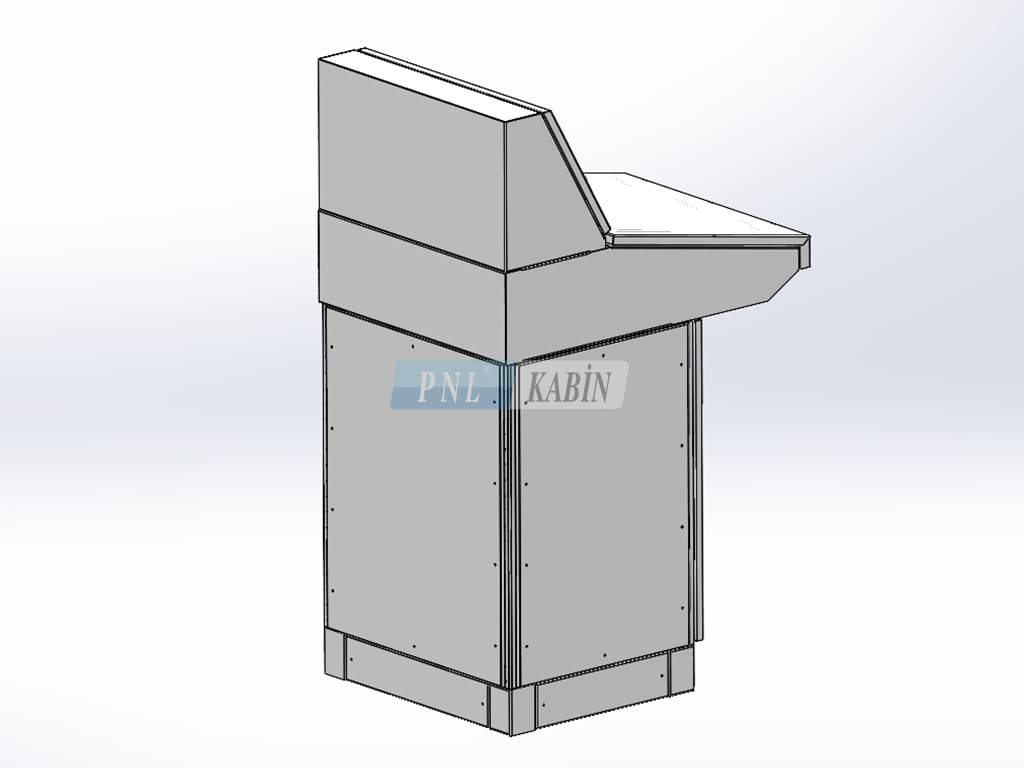

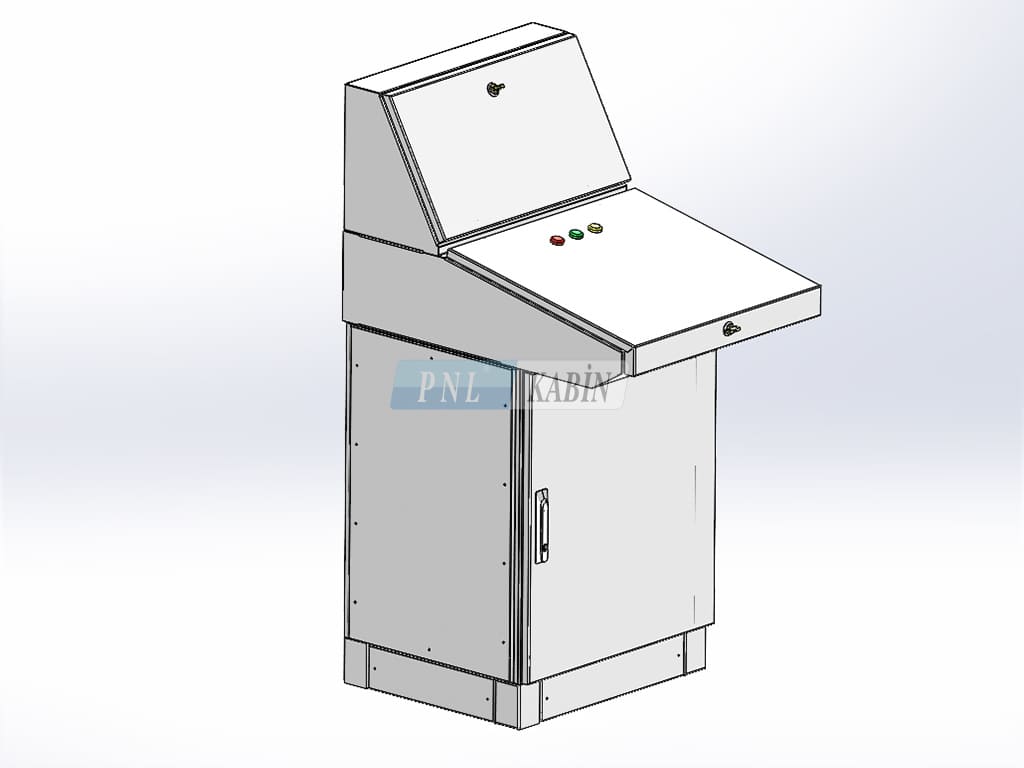

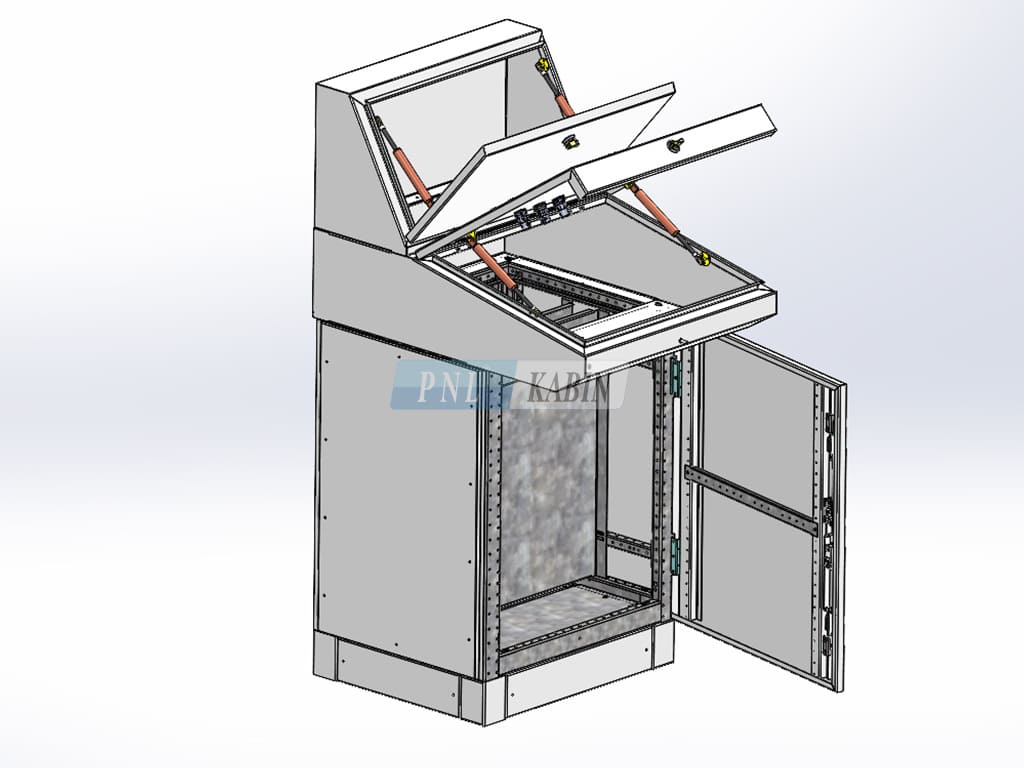

It is designed in accordance with the modular carcass structure. Piano panels are used to control machinery and automation systems.
Piano type panels can be customized according to customer demands. It can be used as a control desk.
| Explanation | Applicable Feature |
|---|---|
| Application Types | With Mounting Plate(MP) |
| According to Place of Use | Indoor / Outdoor |
| Protection Class | Up to IP55 |
| Framework | Modular 1.5-2mm Galvanized |
| Plinth | Semi Modular Welded 1.5mm DKP |
| Impact Rating/IK Code | IK10 |
| Gasket Type | Polyurethane Cast Gasket |
| Color Code | Electro Static Powder PaintRAL 7035W |
| Base Color Code | Electro Static Powder PaintRAL 9005W |
| Optional Features | POC Series Tempered Glass |
| POP Series Plexiglass Glass | |
| PODZOK Series Additional Front Door | |
| PODZMP Freestanding Mounting Plate Set | |
| PODZAK DZT Serial Bottom Cover Set | |
| PORAL Special Request Paint | |
| POA4 Metal Project Pocket | |
| PODZIP DZT Series IP54 | |
| PO Series Table Wheel H:80/120mm | |
| PO Series Metal Scissor Lid Stopper |
